System Hardware |
Processor | CPU | 8nm Octa-core 4*Cortex-A76 + 4*Cortex-A55 up to 2.2/2.4 GHz |
GPU | ARM Mali-G610 MC4 |
NPU | 6TOPs Supports TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN etc |
Memory | LPDDR4x | 2 Channel 32 bit data bus width,4/8GB up to 16GB LP-DDR4x |
Storage | eMMC | 32/64/128GB eMMC |
SSD | M.2 |
GPU | ARM G52 2EE | OpenGL ES 1.1/2.0/3.1/3.2 |
Vulkan 1.0 and 1.1 |
OpenCL 2.0 Full Profile |
Multimedia | 8KP60 H.265/H.264/AV1/VP9/AVS2 decoder, 8KP30 H.264/H.265 video encoder |
I/O Interfaces |
IO | Serial Port | 2xRS232 |
3xRS485 |

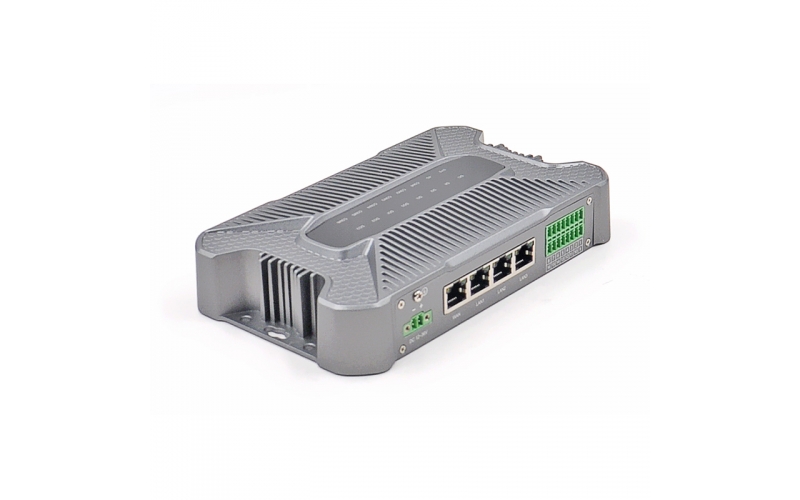

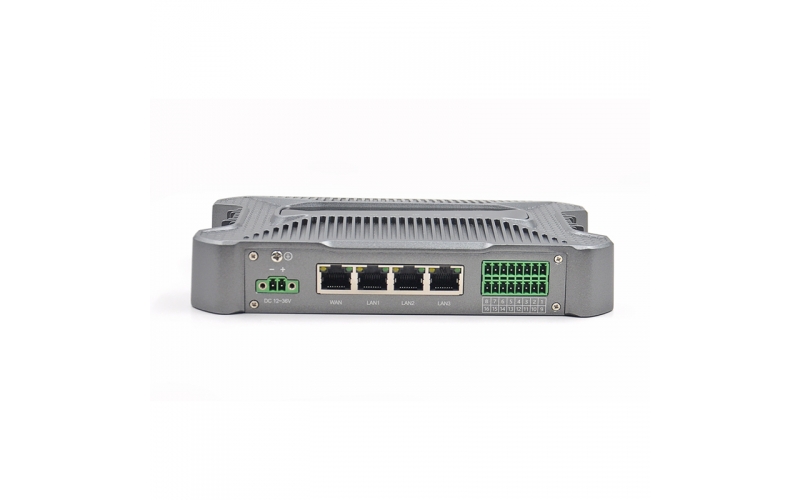

Ethernet | 4xLAN 10/100/1000 Mbps |
CAN | 1xCAN 2.0 |

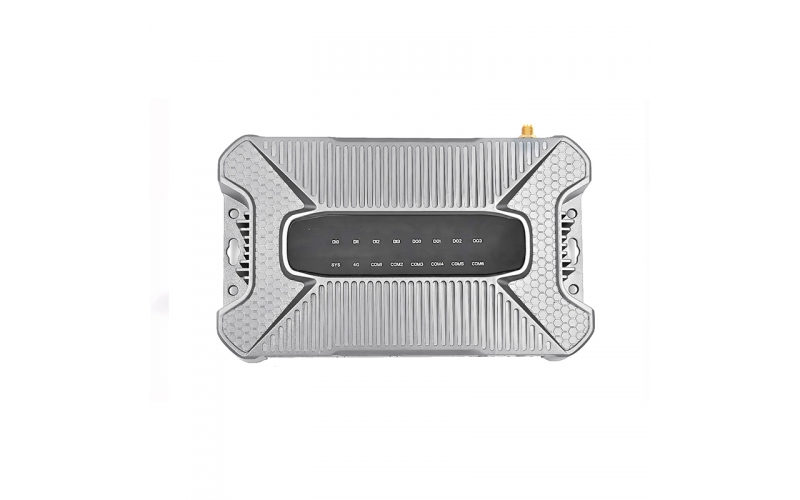

LED Indicators | 10xLEDs |
USB | 1xUSB HOST3.0 TypeA |
1xUSB HOST2.0 TypeA |
1xUSB OTG 3.0 TypeA |
Audio | 1xHP |
WIFI&BT | WIFI6 BT5 |
Display | 2xHDMI 2.0 Out,Support Up to 8K@60Hz |
Mobile network | 4G/5G (optional) |
Others | Support IR input |
Support Auto power OFF / ON |
Integrated MCU for second watchdog or other special purposes |
Integrated E2Prom/F-RAM |
Power | DC 12V-2A (Type) |
Environment | Operating Temperature | 0~70℃/-25~80℃/-40~85℃ |
Operating Humidity | 10to90%r.H.non cond. |
Storage Temperature | -40~85℃ |

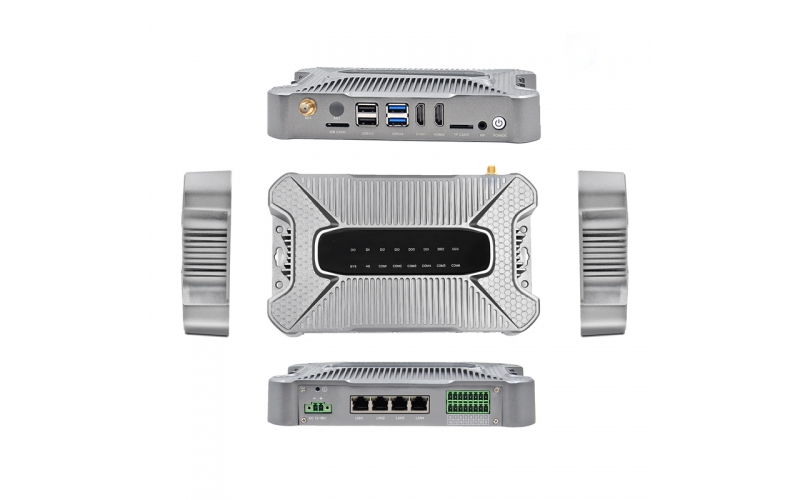

Mechanical | 160(L)x120(W)x36(H)mm |
Operation System | Linux,Ubuntu,Debian,Android,OpenHarmony |
