S606

ItemDescriptionCPUFreescale i.MX6 Solo ARM Cortex A9(1.0 GHz,512KB L2 Cache)Freescale i.MX6 DualLite ARM Cortex A9(2 x 1.0 GHz,512KB L2 Cache)Freescale i.MX6 Dual ARM Cortex A9(2 x 1.2 GHz,1MB L2 Cach

詳細信息

規格參數

Item	Description
CPU	Freescale i.MX6 Solo ARM Cortex A9(1.0 GHz,512KB L2 Cache)
	Freescale i.MX6 DualLite ARM Cortex A9(2 x 1.0 GHz,512KB L2 Cache)
	Freescale i.MX6 Dual ARM Cortex A9(2 x 1.2 GHz,1MB L2 Cache)
	Freescale i.MX6 Quad ARM Cortex A9(4 x 1.2 GHz,1MB L2 Cache)
Memory	1 GB LV-DDR3,1066 MT/s Up to 2GB LV-DDR3
Graphics	Integrated in Freescale i.MX6 Series Video (VPU), 2D Graphics (GPU2D) and 3D Graphics (GPU3D), 3D graphics with 4 shaders up to 200MT/s dual stream 1080p/720p decoder/encoder OpenGL 2.0, OpenVG 1.1 processing unit
Display	1 x HDMI 1.4 Up to 1920x1080
	2 x 24bit LVDS Up to 1920x1080
	1 x 24bit Parallel RGB Up to WUXGA1920x1200
	1 x VGA Up to 1920x1080
HD Video Decode	MPEG2 MP, HP MPEG4 SP H.264 VC-1 DivX
Mass Storage	eMMC 16GB ,Up to 32GB
Ethernet	RGMII Ethernet 10/100/1000Mbit/s Base-T
Interfaces	1 x 24bit Parallel LCD Inteface
	1 x VGA 1 x HDMI 2 x LVDS(4 Lanes) 1 x USB 2.0 OTG
	4 x USB 2.0 HOST 1 x Mini Pcie 1 x Micro SIM Slot
	1 x SATA 2.0(3GB/s) 1 x Micro SD Slot 1 x Can 2.0B
	5 x RS232 2 x RS485 2 x SPI 1 x CSI(8bit) 1 x RJ45
	1 x WiFi ANT(I-PEX) 1 x DC JACK 1 x Audio JACK 2 x LED
	1 x Reset button（通過插針擴展） 1 x Power button（通過插針擴展）
Buzzer	Support Buzzer
RTC	Support RTC Backup battery
WIFI	Support 2.4G/5G WIFI Module
Other	Watchdog timer
Other	Built-in watchdog reset circuit
Operating System	Windows CE 7.0 Linux3.10 Android4.4.2
Operating Temperature	Extended Consumer Grade :-20°C to +70°C Industrial Grade: -40°C to +85°C
Storage Temperature	50 °C to +100 °C
Humidity	operating humidity： 10 to 90% r. H. non cond.
Humidity	Storage humidity： 5 to 95% r. H. non cond.
Power Supply	DC 9-24V ± 5% (Typical DC 12V)

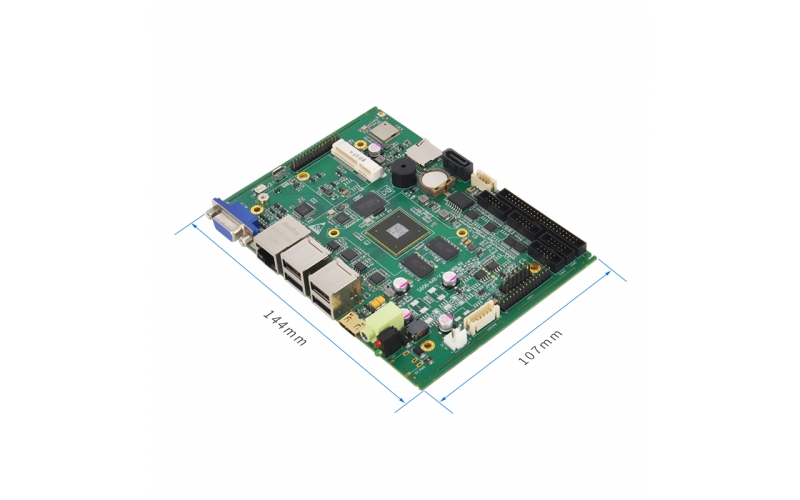

Mechanical Dimensions	144(L) x 107(W) x 22(H) mm PCBA Height:22mm
