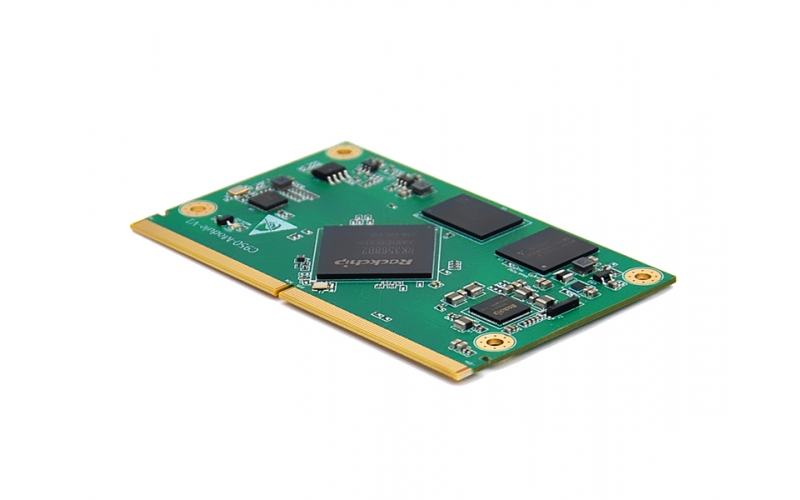

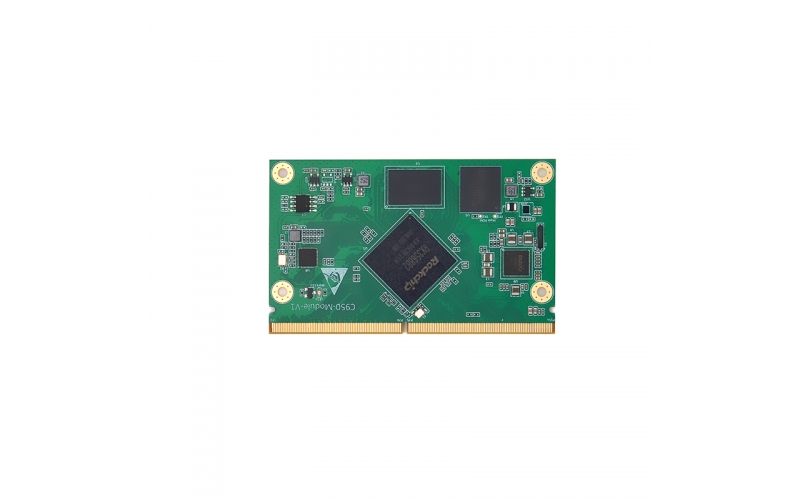

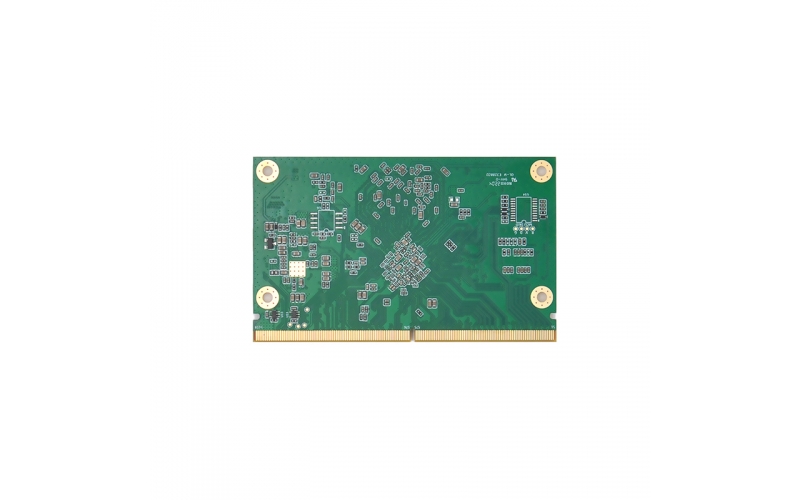

C950模塊

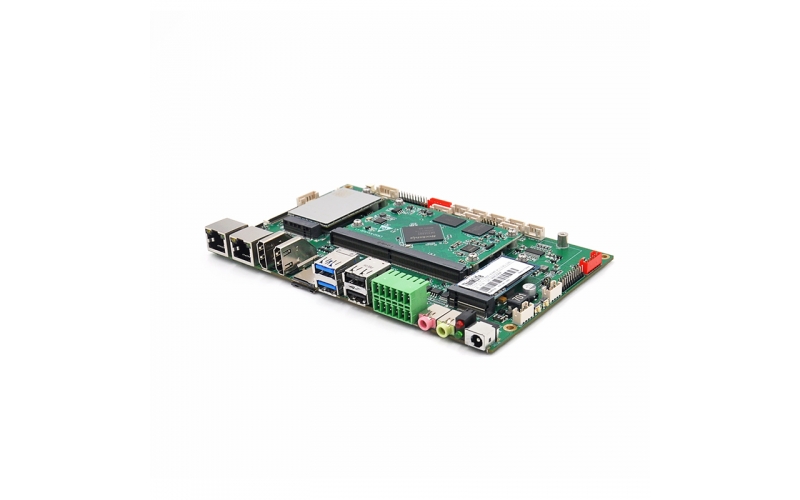

簡單的演示開發板，
|用于展示ABC43溫濕度傳感器的卓越性能與易用性。
每個ABC43都配有獨立的\nABC17025三點溫度校準證書，
從而實現了成本效益高的大批量生產，例如符合GDP要求的數據記錄器。

詳細信息

規格參數

Item

Description

CPU

Rockchip? ARM Cotex-A55四核處理器RK3568

Memory

2GB LP-DDR4/4X,3200 MT/s, 1 channel 32 bit data bus widthUp to 8GB LP-DDR4/4X

Mass Storage

eMMC 16/32/64GB (Optional)

Graphics

3D Graphics Engine

HD Video Encoder

Video Encoder

HD Video Decoder

Video Decoder

H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps
H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps
VP9 Profile0/2 yuv420@L5.1 up to 4096x2304@60fps
VP8 verision2,up to 1920x1088@60fps
VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, AdvanProfile@level0~3,up to 1920x1088@60fps
MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to 1920x1088@60fps
MPEG-2 Main Profile, low, medium and high levels, up to 1920x1088@60fps
MPEG-1 Main Profile, low, medium and high levels, up to 1920x1088@60fps
H.263 Profile0,levels 10-70,up to 720x576@60fps

Display Interface

2 x MIPI DSI 4 Lane, Support Up to 1920x1080@60Hz

1 x 24/18bit LVDS , Support 1366x768@30Hz

1 x EDP1.3 4 Lane, Support Up to 2560x1600 @60Hz

1 x HDMI 2.0 Out , Support Up to 4Kx2K @60Hz

1 x RGB888/BT656/BT1120, Support up to 1920x1080@60Hz

USB Port

2 x USB HOST 2.0

1 x USB HOST 3.0

1 x USB OTG 3.0

Ethernet

1 x 10/100/1000Mbps Ethernet PHY ( RTL8211F )

1 x RGMII, Support 10/100/1000 Mbps

1 x QSGMII/SGMII, Support 10/100/1000 Mbps

Connectivity Interfaces	2 x SDIO3.0 1 x PCIe2.1, Support one lane 1 x PCIe3.0, Support two lane 3 x SATA3.0 5 x I2C 3 x SPI 10 x UART 3 x CAN 2.0 16 x PWM N x GPIO 3 x ADC 4 x I2S/PCM 1 x PDM, Up to 8 channels 1 x Green LED 1 x Red LED 1 x HP 1 x Microphone
Other	Watchdog timer Built-in watchdog reset circuit Support F-RAM/E2Prom
Operating System	Linux 4.x Android 11.0
Operating Temperature	Consumer Grade : 0°C to +70°C Extended Grade: -20°C to +85°C
Storage Temperature	-40 °C to +100 °C
Humidity	operating humidity： 10 to 90% r. H. non cond. Storage humidity： 5 to 95% r. H. non cond.
Power Supply	DC 5V ± 5% (Typical)，Imax 3A
Mechanical Dimensions	82(L) x 50(W) x 5(H) mm PCBA Height:5mm
